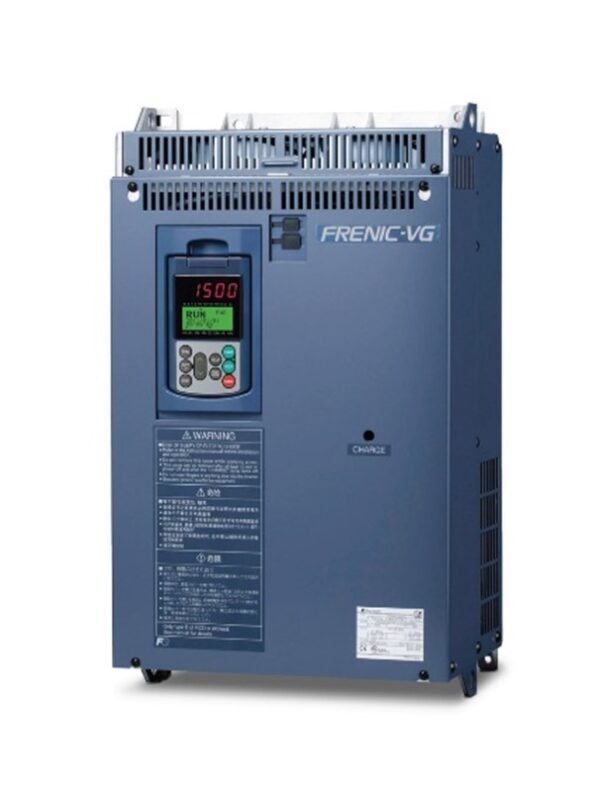

FRENIC VG Series

FRENIC VG Series

With FRENIC-VG, Fuji Electric has concentrated its technologies to deliver the best-performing inverter on the market. In addition to its basic performance, this model features the following great improvements: support for previously difficult applications due to technical and capability limitations, easier and more user-friendly maintenance, as well as environmental friendliness and safety. The FRENIC-VG Series now proudly introduces the inverter as a unit type as well as a stack type.

Features

• Powerful: from 0.75 kW to 630 kW in triple rating HD, LD and MD
• Strong: even though in hard environment such as sulfurizing gas, salty environments, dust, humidity, etc.
• Flexible: IM (open and closed loop) and PMSM (open* and closed loop) control
• Torque accuracy: +/- 3%
• Current loop bandwidth: 2000 Hz
• Speed control accuracy: +/- 0,005%
• Speed loop bandwidth: 600 Hz
• Connected to the world: USB on board, typical field buses and Ethernet based field bus
• Making safety easier: STO, SS1, SLS, SBC
• All applications solved: Cranes, rubber, paper, winding, test benches, press, shipboard winch, flying shear, positioning, etc are included
• Adaptable and versatile: 5 slots for adjusting to the requirements, real  time built in, FULL PLC on board optional, etc.
  *Coming soon

Option cards

Fieldbus Options:

• PROFIBUS-DP communication card (OPC-VG1-PDP)
• DeviceNet communication card (OPC-VG1-DEV)
• T-Link communication card (OPC-VG1-TL)
• CC-Link communication card (OPC-VG1-CCL)
• SX bus communication card (OPC-VG1-ESX)
• Terminal block for high speed communications (OPC-VG1-TBSI)
• PROFINET-IRT communication card (OPC-VG1-PNET)

Other Options:

• Synchronized interface (OPC-VG1-SN)
• Analog input/output interface expansion card (OPC-VG1-AIO)
• Digital input (OPC-VG1-DI)
• Digital input (OPC-VG1-DIO)
• PG interface card / +5V line driver (OPC-VG1-PG)
• PG interface card / Open collector (OPC-VG1-PGo)
• PG interface card / ABS encoder with 17-bit high resolution (OPC-VG1-SPGT)
• PG card for synchronous motor drive / Line driver (OPC-VG1-PMPG)
• PG card for synchronous motor drive / Open collector (OPC-VG1-PMPGo)
• User programming card (OPC-VG1-UPAC)
• Functional safety card (OPC-VG1-SAFE)

FRN7.5VG1S-2J
FRN11VG1S-2J
